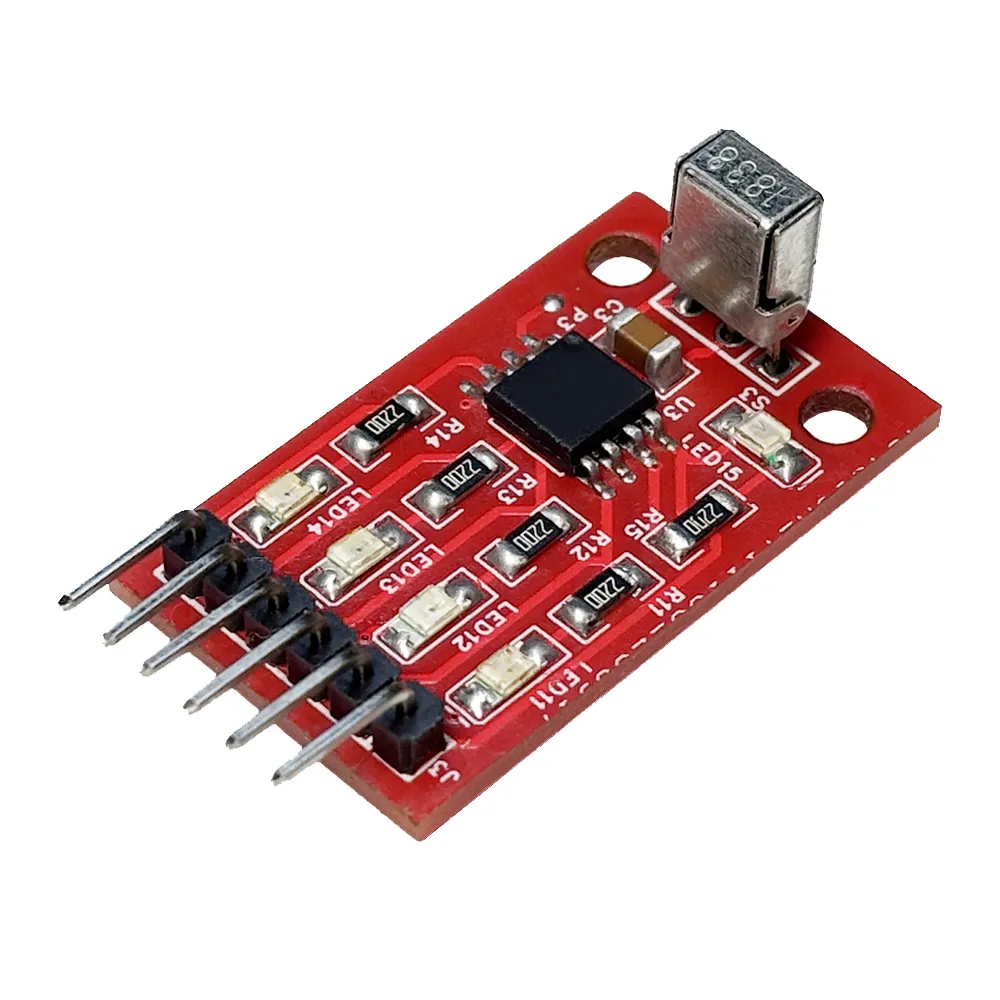

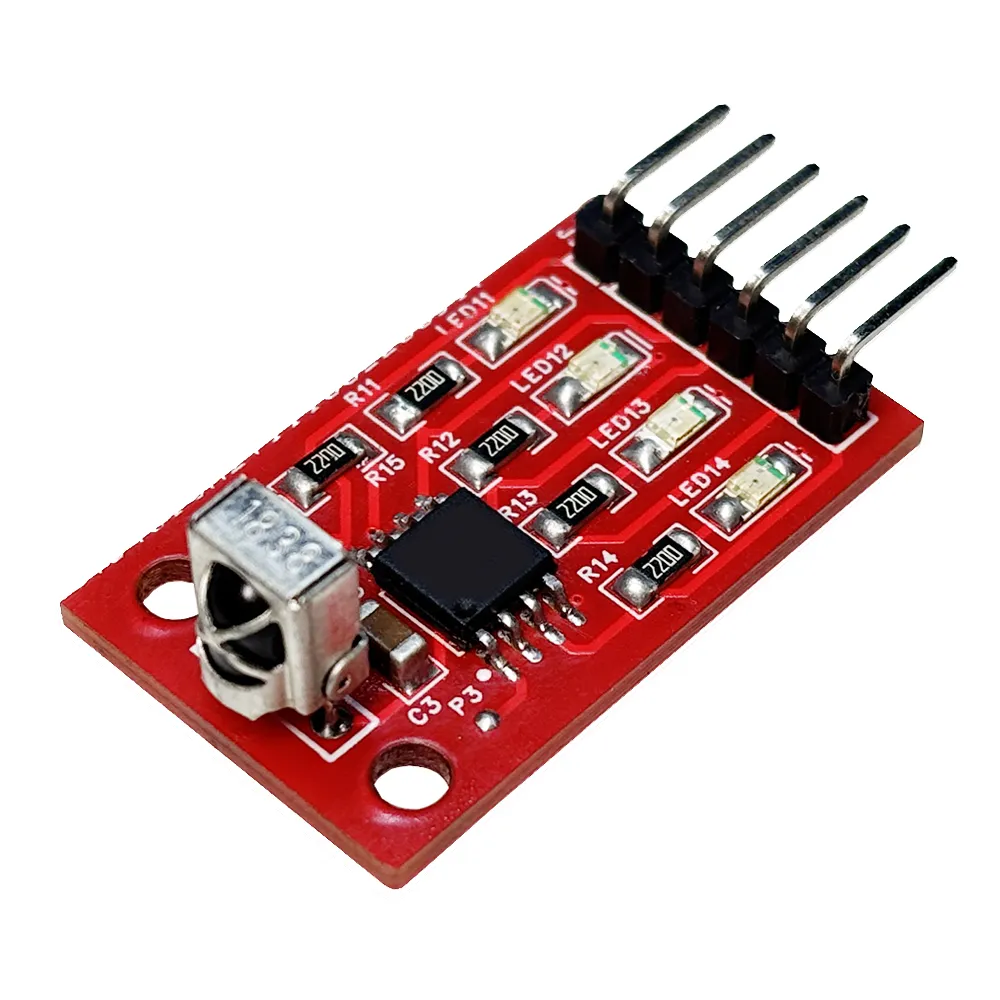

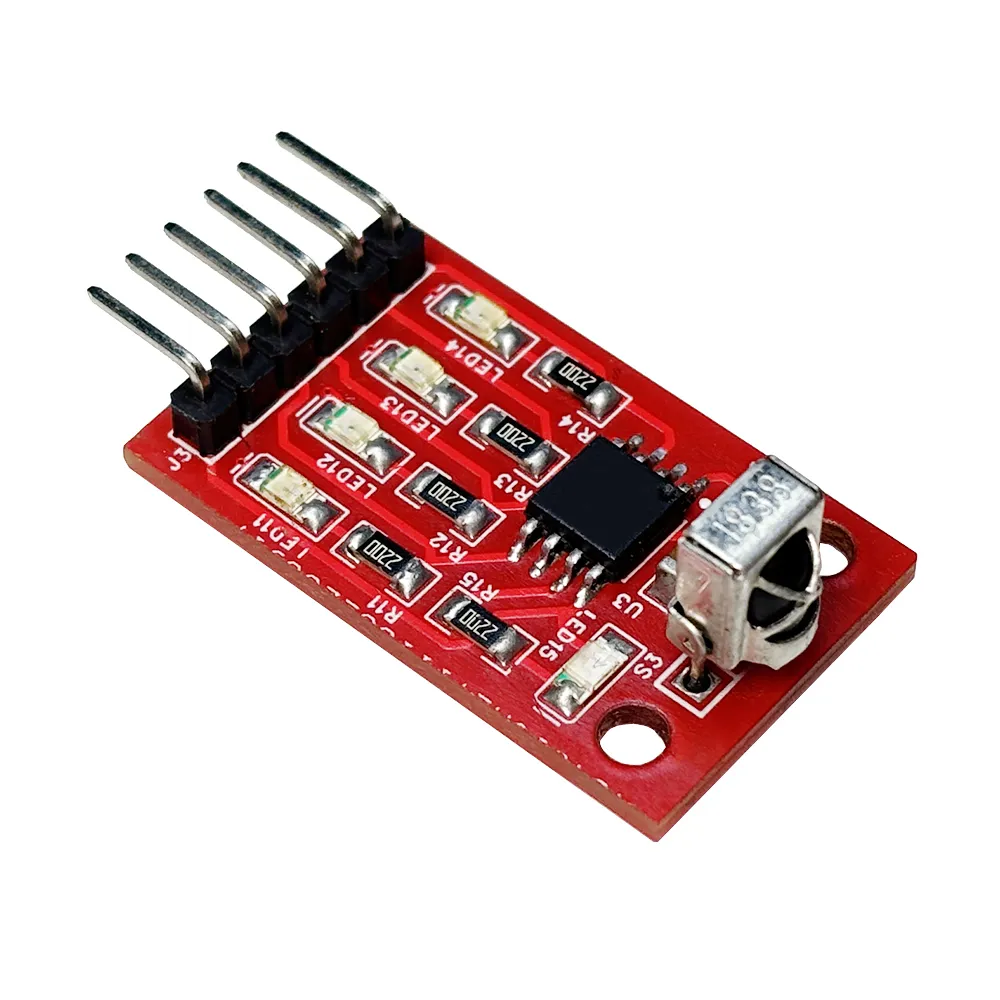

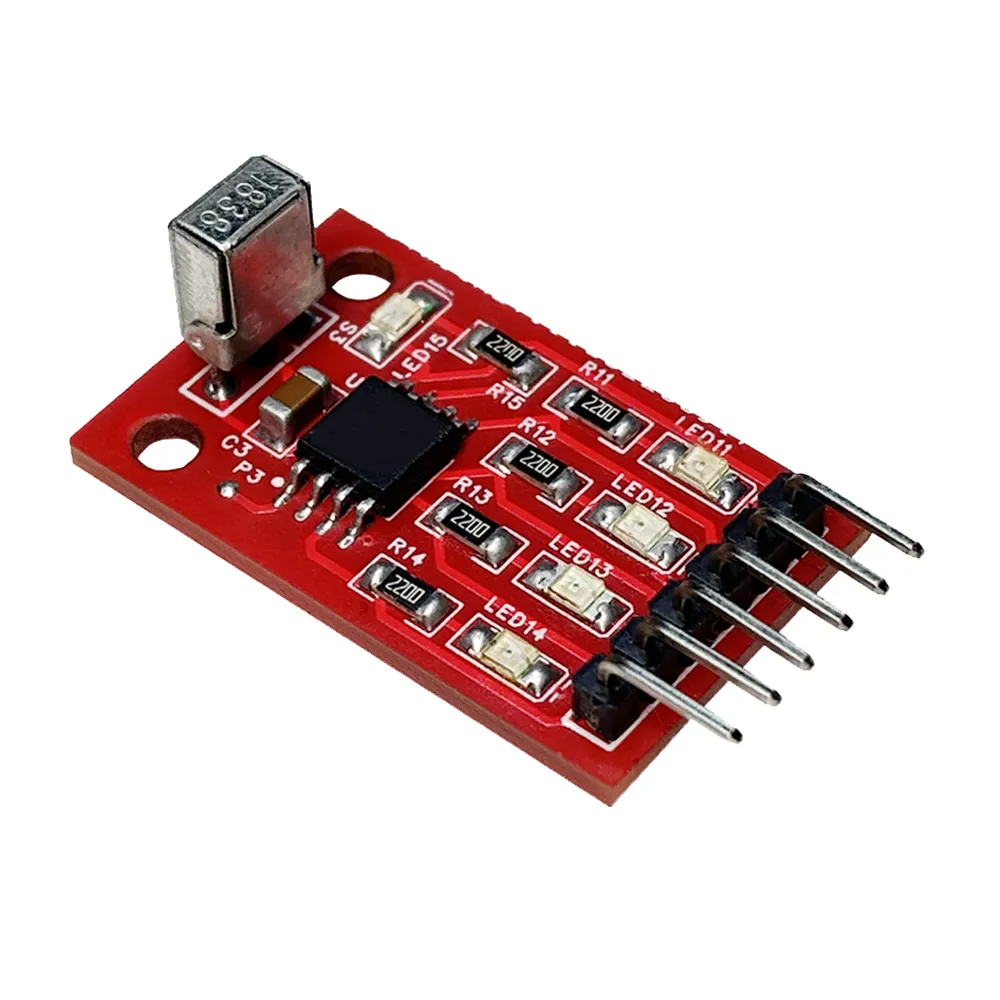

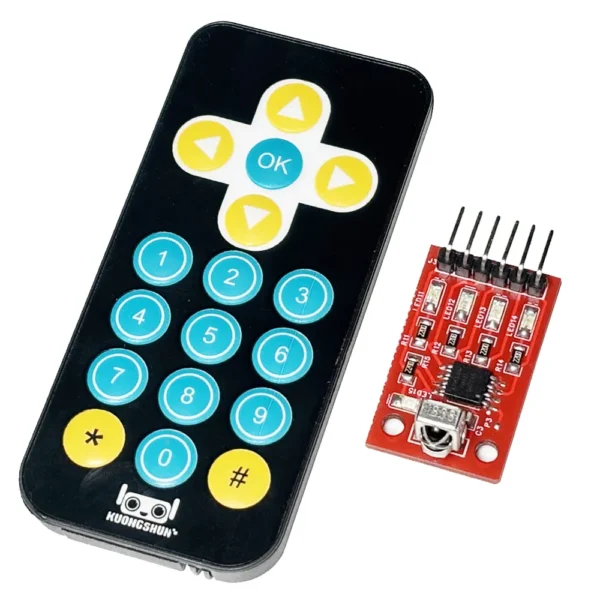

4 Channel IR Infrared Remote Decoder Module with Remote
₹259.00₹462.00 Excl. GST 18% (-44%)
- Item Type: 4-Channel IR Remote Control
- Operating voltage: DC 3.3V – 5V
- Current: 45mA
- Output Type: Active HIGH (can directly drive LEDs or Relay Modules).
- Transmission Distance: Up to 10M (depending on environment and receiver sensitivity).
- Effective Angle: 60° (remote works only within this angle range).
- IR Remote Compatibility: Standard NEC protocol IR remote.
✅ Shipping Charge Only Rs.49
✅ Free Delivery on all Orders Above Rs.999
✅ All Orders Shipped within 24 Hours
✅ GST Input Tax Credit is available
Frequently Bought Together
-
4 Channel 5V Relay Module High and Low Level Trigger Relay Module with Optocoupler
₹215.00 Excl. GST 18%
- This item: 4 Channel IR Infrared Remote Decoder Module with Remote(₹259.00
₹462.00Excl. GST 18% (-44%)) - 4 Channel 5V Relay Module High and Low Level Trigger Relay Module with Optocoupler(₹215.00 Excl. GST 18%)
This 4 Channel IR Infrared Remote Decoder Module with Remote comes complete with an IR remote, allowing you to control 4 devices individually using buttons 1, 2, 3 and 4. It also supports simple robot control via directional buttons FORWARD, BACKWARD, LEFT and RIGHT. Each channel features an onboard LED to indicate output status, and the module works with standard NEC protocol IR remotes.
Note:
-
- This module is compatible only with active HIGH-level Triggering relay modules. 👉 Buy compatible relay module Click Here
Applications:
- Home Automation – Control lights, fans, and appliances individually via IR remote.
- LED/Device Control – Operate LEDs or small DC devices with indicator LEDs.
- Robot Control – Move simple diy robots or toy cars (FORWARD, BACKWARD, LEFT, RIGHT, OK for stop).

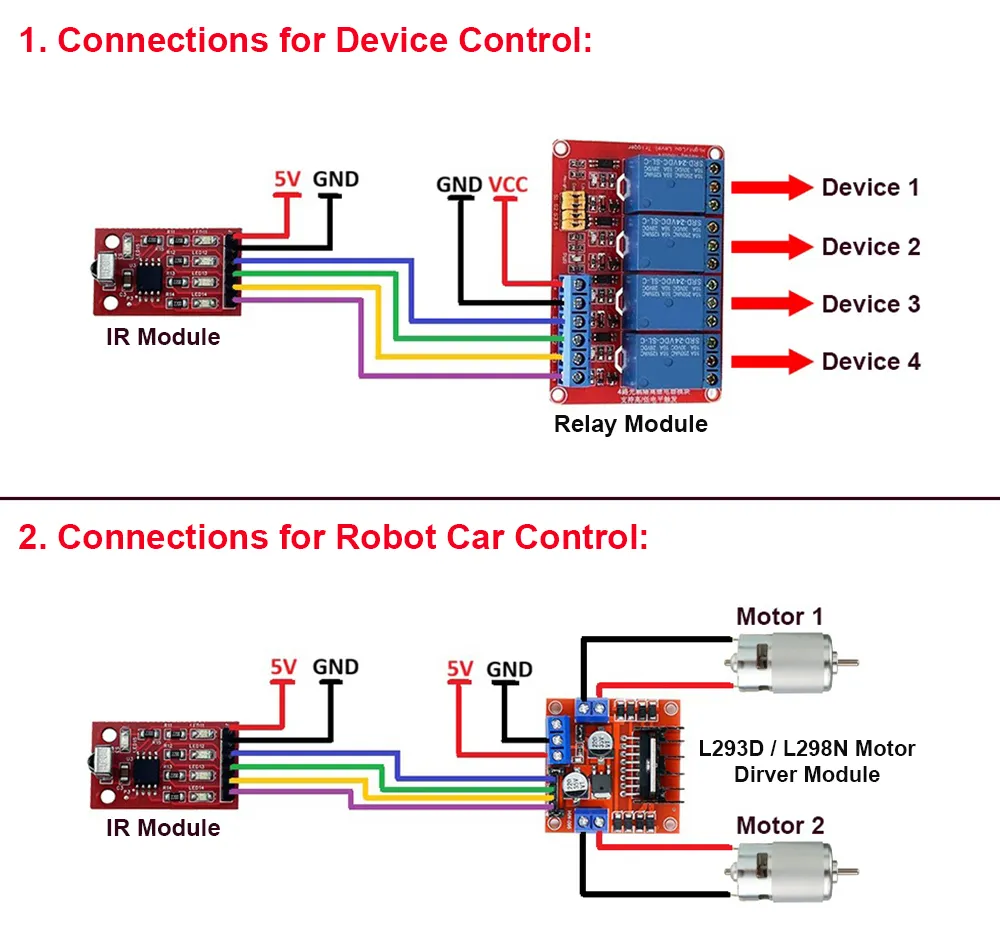

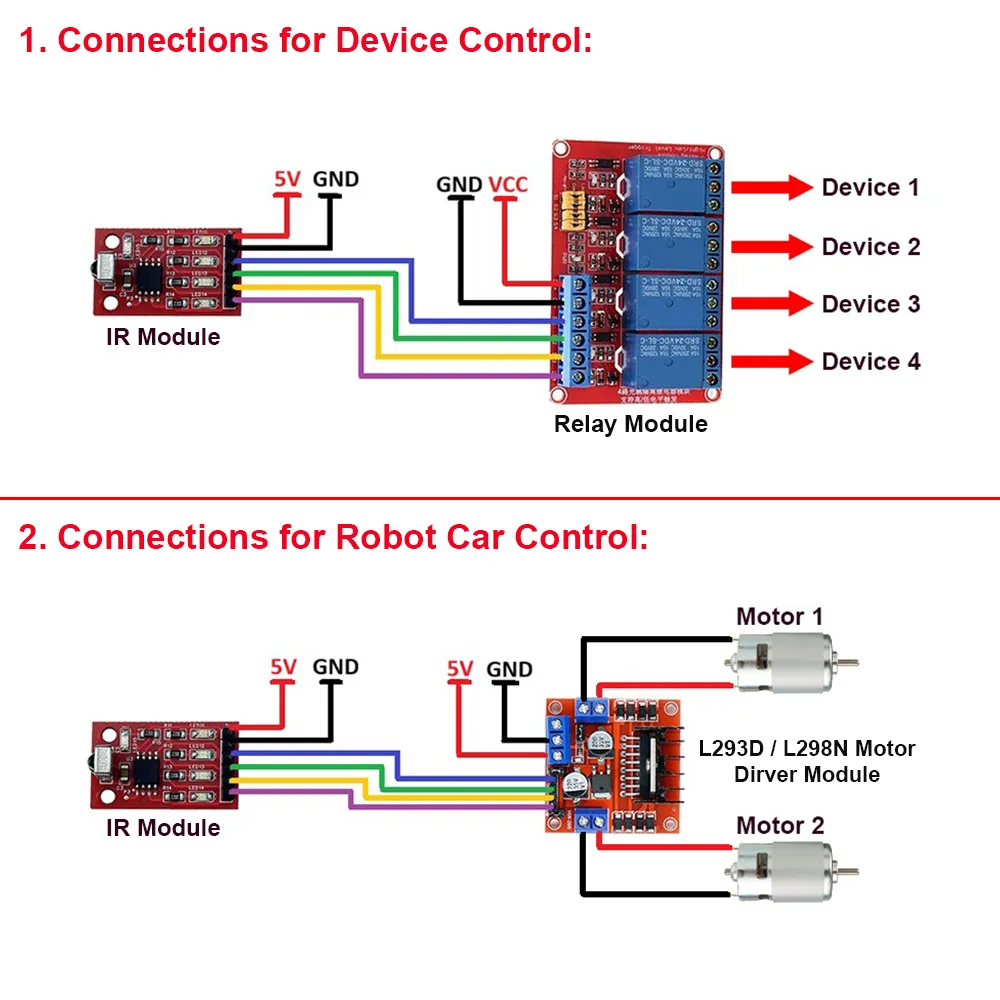

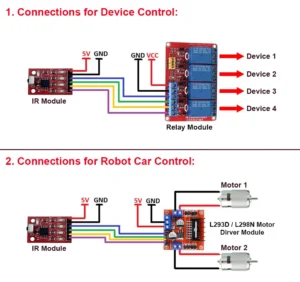

- Relay Control – Connect outputs to relays to safely control high-voltage devices.
- DIY Projects & Education – IR-based switching systems for hobby or learning projects.
- Multi-Purpose Control – Toggle devices and robot control with a single IR remote.

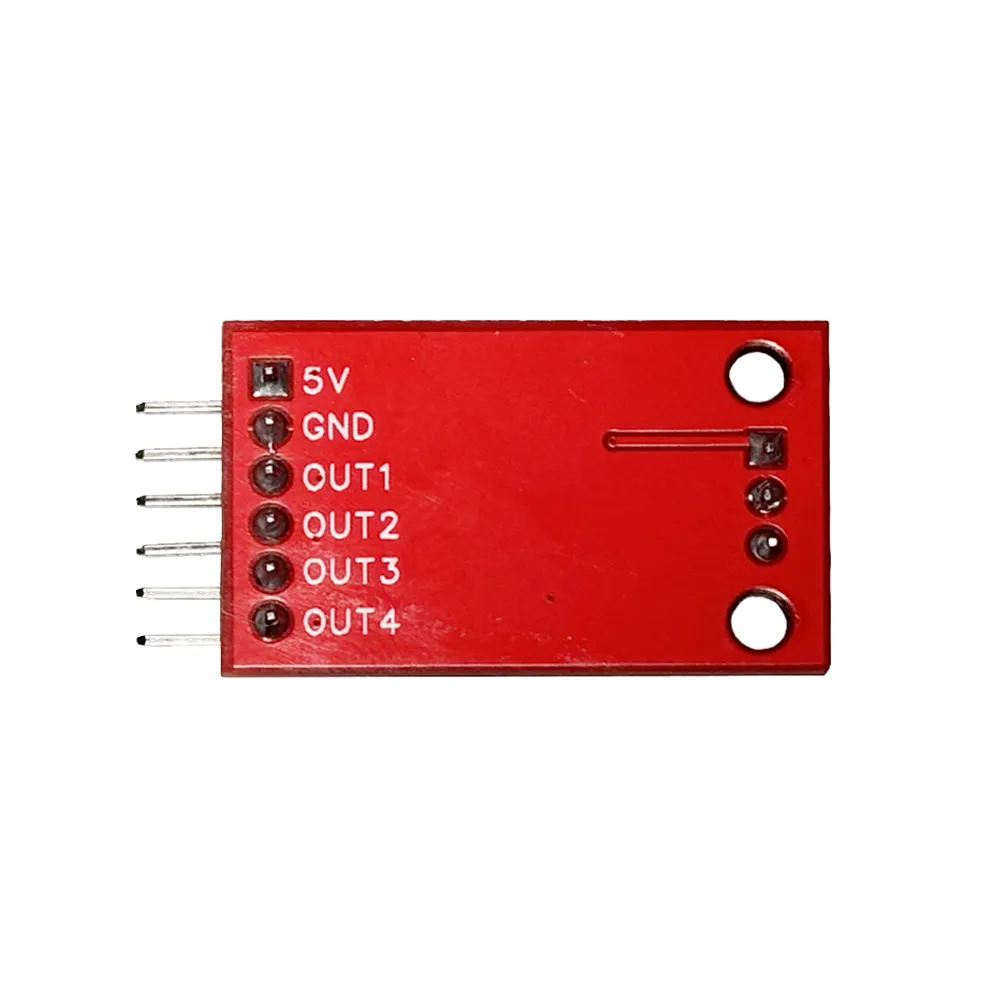

Module Pins:
- Pin 1 → 3.3V – 5V
- Pin 2 → Ground
- Pin 3 → Output 1
- Pin 4 → Output 2
- Pin 5 → Output 3
- Pin 6 → Output 4
Features:

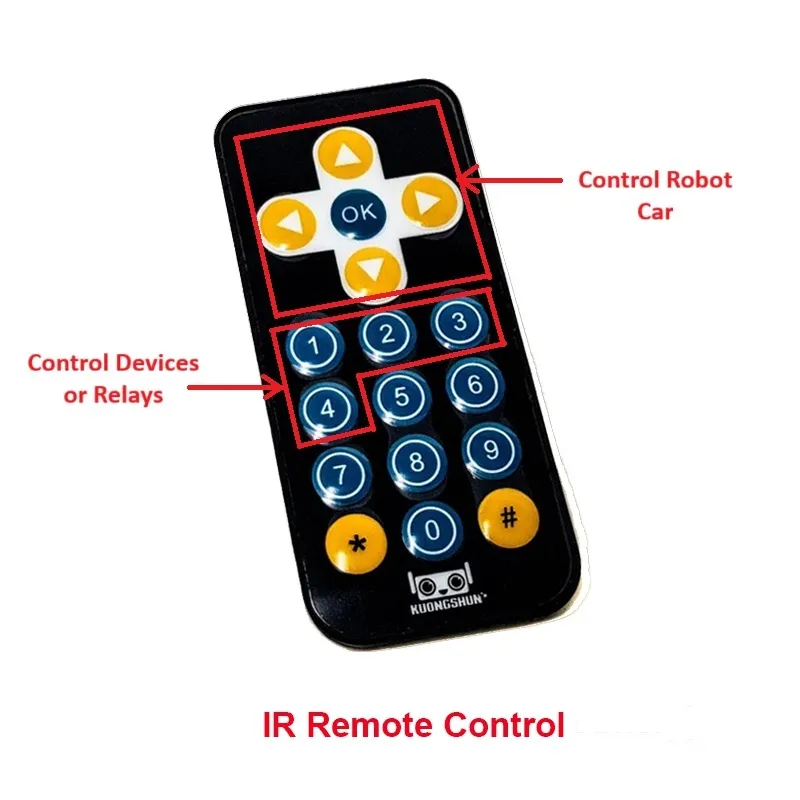

- 4 Independent Channel Control → Control 4 different outputs (devices or relays) individually using IR remote buttons (1–4).
- IR Remote Based Operation → Works with standard IR remotes (NEC protocol) to receive and decode commands.

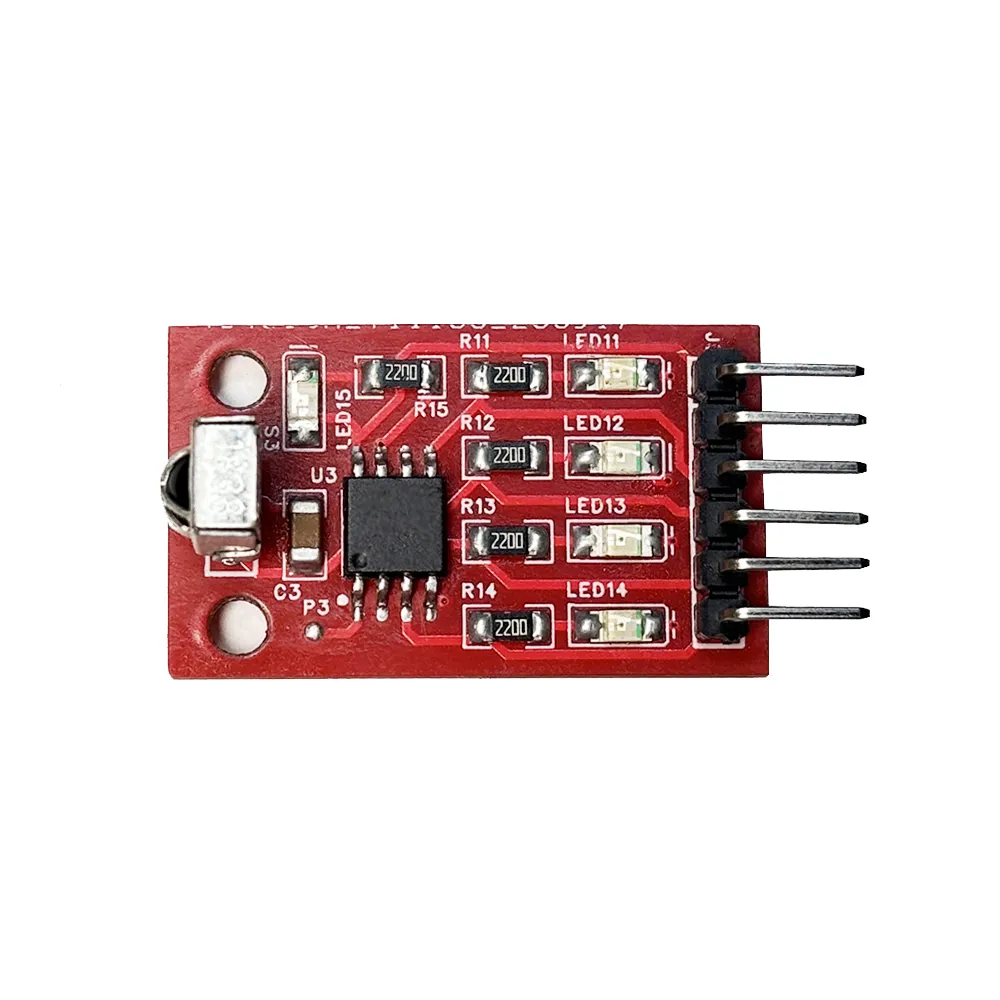

- Built-in Output Indicator LEDs → Each channel has its own onboard LED to indicate the current output status (ON/OFF).

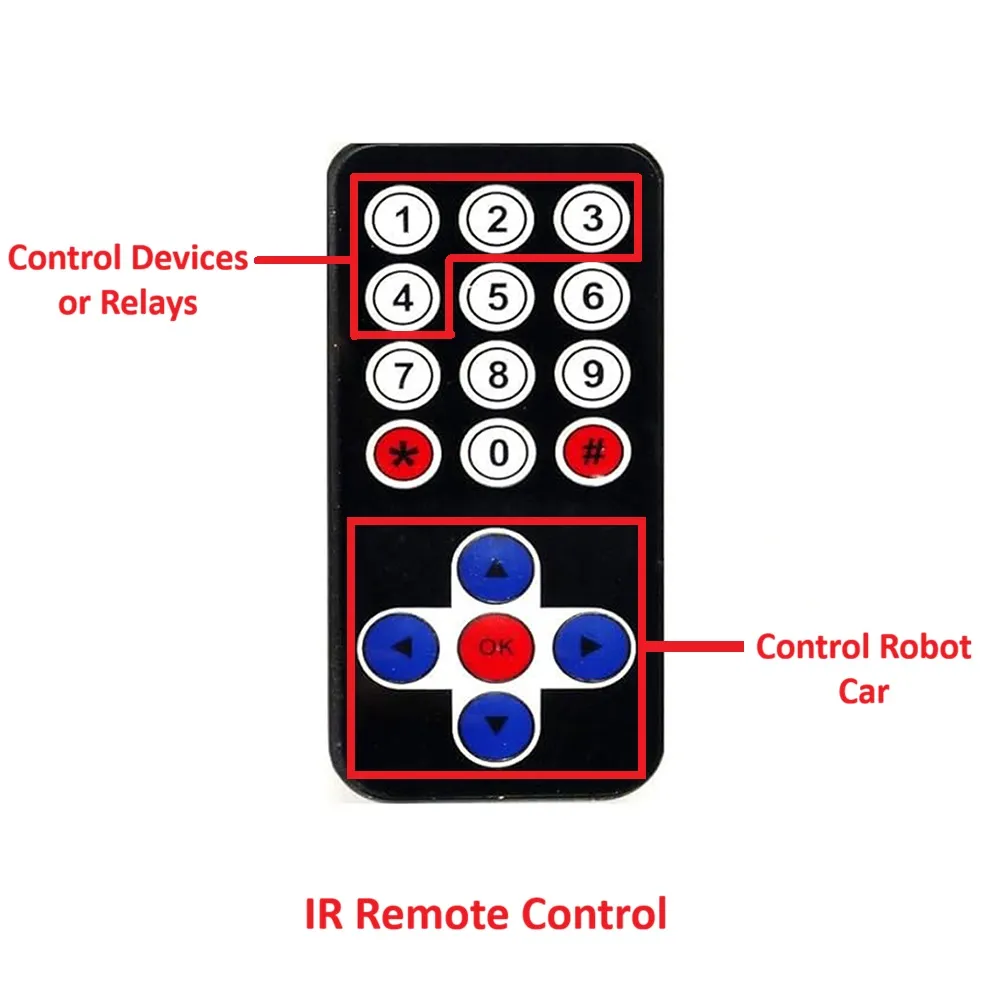

- Directional Control Mode (Robot Movement) → Supports FORWARD, BACKWARD, LEFT, and RIGHT buttons for robot direction control. Only one direction output can stay active (HIGH) at a time.
- STOP Function → The OK button instantly turns OFF all direction outputs.
- Toggle Function → Each button press toggles the output state (ON→OFF / OFF→ON).
IR Module Output Table:
| Remote Button | OUTPUT 1 | OUTPUT 2 | OUTPUT 3 | OUTPUT 4 |
|---|---|---|---|---|
| 1 | Toggle (HIGH ⇄ LOW) | — | — | — |
| 2 | — | Toggle (HIGH ⇄ LOW) | — | — |
| 3 | — | — | Toggle (HIGH ⇄ LOW) | — |
| 4 | — | — | — | Toggle (HIGH ⇄ LOW) |
| FORWARD | HIGH | LOW | LOW | HIGH |
| BACKWARD | LOW | HIGH | HIGH | LOW |
| LEFT | LOW | LOW | LOW | HIGH |
| RIGHT | HIGH | LOW | LOW | LOW |
| OK (STOP) | LOW | LOW | LOW | LOW |
Specifications:
| Item Type | 4-Channel IR Remote Control |
|---|---|
| Operating voltage | DC 3.3V – 5V |
| Current | 45mA |
| Operating Distance Range | Up to 10M (depending on environment and receiver sensitivity). |
| Effective Angle | 60° (remote works only within this angle range) |
| Output Type | Active HIGH (can directly drive Relay Module or Motor Driver) |
| Control Channels | 4 independent outputs (OUT1, OUT2, OUT3, OUT4) |
| IR Remote Compatibility | Standard NEC protocol IR remote |
| Battery | CR2025 Button batteries |
| Operating Temperature | -40°C to 85°C |
| Module Size (LxWxH) | 31 x 28 x 12 mm |
| Weight | 14 gm |
Package Includes:
1 x 4 Channel IR Infrared Remote Decoder Module.
1 x IR Remote Control.
*Product Images are shown for illustrative purposes only and may differ from actual product.
| Weight | 0.02 kg |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
