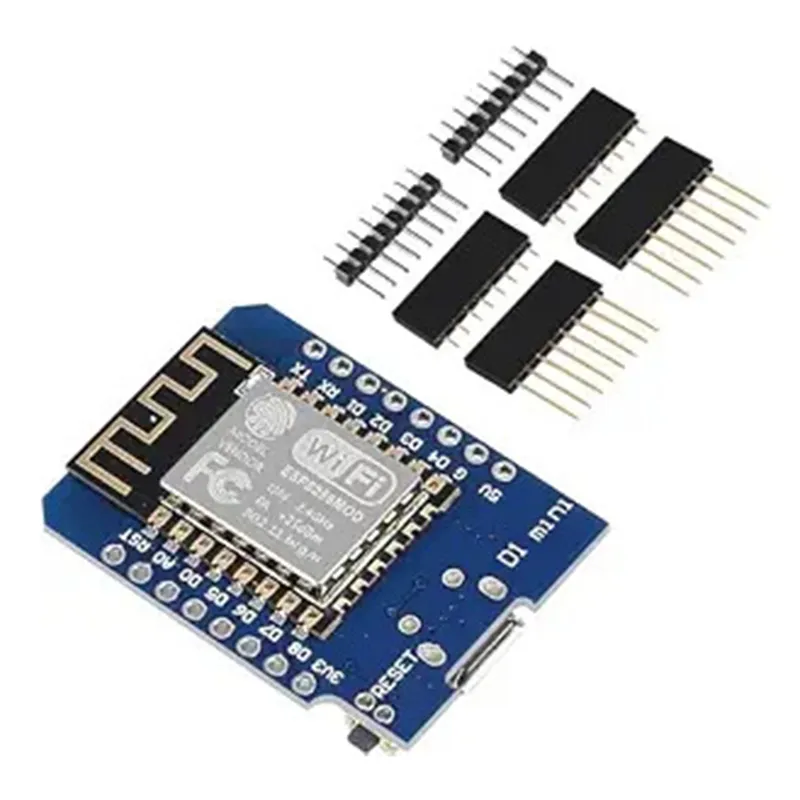

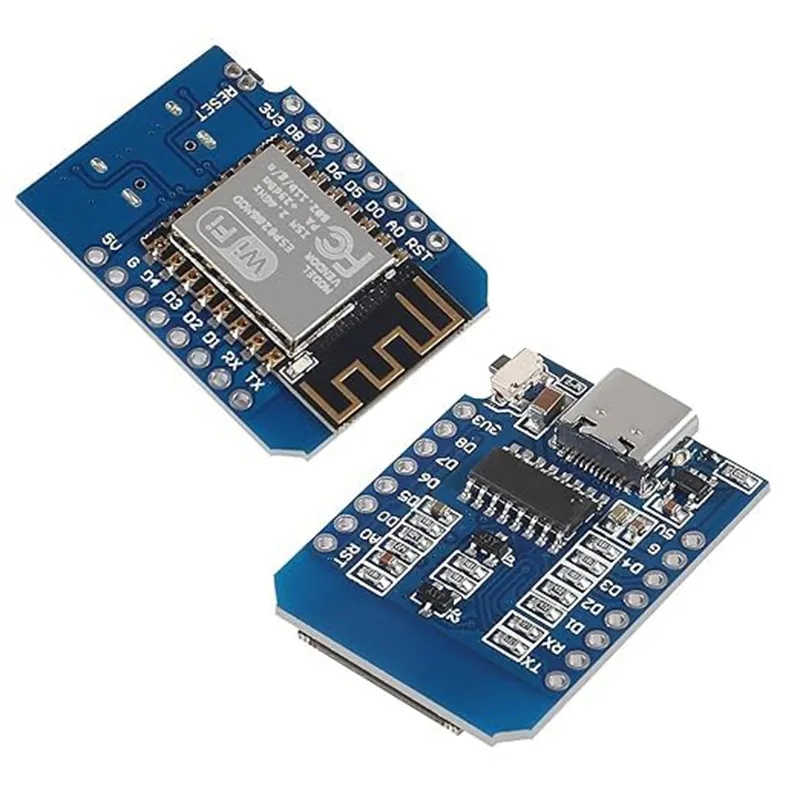

ESP8266 D1 Mini V2 NodeMcu Lua WIFI IOT Development Board
₹199.00 Excl. GST 18%
- Use BRT (Bias Resistor Transistor)
- Easier into flash mode.
- 30% increase in radiating area
- Good stability.
- On-Board Switching Power Supply
✅ Shipping Charge Only Rs.49
✅ Free Delivery on all Orders Above Rs.999
✅ All Orders Shipped within 24 Hours
✅ GST Input Tax Credit is available
This is D1 Mini V2 NodeMcu Lua WIFI Development Board Based ESP8266, it is a mini WIFI board based on ESP-8266EX. 11 digital input/output pins, all pins have interrupt/PWM/I2C/one-wire supported(except D0) 1 analog input(3.3V max input) and a Micro USB connection.
The development board features WiFi-SoC ESP8266 and is made for fast Internet-of-Things (IoT) prototyping. It is flashed with the latest firmware version and can be set up and programmed right away with the onboard micro USB connection. With only a few lines of code, the NodeMCU Dev Kit connects to your local network and ready for control by other network members like computers and smartphones.
Features:
- Compact and lightweight design
- Built-in WiFi capability
- Easy USB programming support
- Compatible with Arduino ecosystem
- Suitable for IoT applications
- Breadboard-friendly form factor
- Fast prototyping and development
- Supports multiple communication protocols
Specifications:
| Item Type: | WiFi Module, Development Board |
| Based On | ESP8266 Based |
| Max Input Voltage | 3.3V |
| Length | 35mm |
| Width | 26mm |
| Weight | 10 gm |
Package Includes:
1 x ESP8266 D1 Mini V2 NodeMcu Lua WIFI IOT Development Board.
