DS3231 RTC Module Precise Real Time Clock I2C AT24C32 without Cell

DS3231 RTC is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The DS3231 RTC module Precise Real-Time Clock Module is a low-cost, extremely accurate I²C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Note: This product does not include a battery.

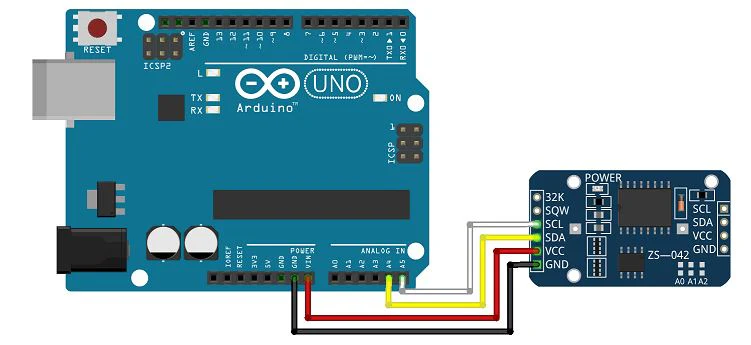

Connection Diagram:

Applications:

• Real-time clock for precise timekeeping
• Used in data loggers for timestamping events
• Ideal for alarms, timers, and scheduling tasks
• Battery backup ensures continuous operation
• Works with microcontrollers via I2C/IIC interface
• Used in automation, IoT, and embedded systems

Features:

• Two Time-of-Day Alarms
• Digital Temperature Sensor Output
• Register for Aging Trim
• DS3231 RTC with 2032 Battery Holder
• Highly Accurate RTC Manages All Timekeeping Functions
• Real-Time Clock Tracks Time, Date, Day, and Leap Years (Up to 2100)
• Configurable I2C Address for AT24C32 via SMD Jumpers (A0, A1, A2)
• Programmable Square-Wave Output Signal
• Battery-Backup Input for Continuous Timekeeping
• Low Power Operation Extends Battery-Backup Runtime

Specifications:

Package Includes:

1 x DS3231 RTC Module Precise Real Time Clock I2C AT24C32 without Cell.
