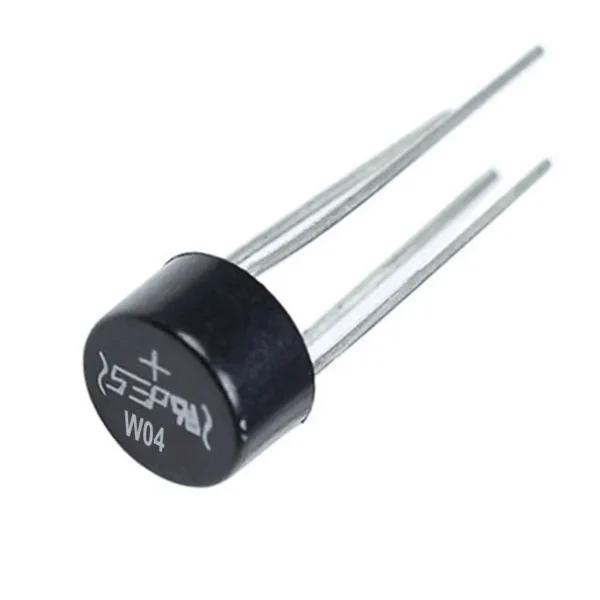

W04M 1A 400V Full Wave Bridge Rectifier
₹9.00 Excl. GST 18%
- Peak Reverse Voltage (Vrrm): 400V
- Max. RMS Bridge Voltage (Vrms): 280V
- Max. DC Blocking Voltage (Vdc): 400V
- Av. Forward Rectified Current (Io): 1.5A
- Maximum Reverse Current (Ir): 10µA
- Forward Volt Drop per Element (Vf): 1.0V
✔ Shipping Charge Only Rs.49
✔ Free Delivery on all Orders Above Rs.999
✔ All Orders Shipped within 24 Hours
✔ GST Input Tax Credit is available
The W04M Rectifier a Single Phase Glass Passivated Silicon Bridge Rectifier of a voltage range 50 to 1000 Volts and Current 1.5 Amperes.
Features:
- Single-phase full wave bridge rectifier.
- Compact epoxy case with high heat dissipation.
- High surge current capability.
Specifications:
| Maximum Recurrent Peak Reverse Voltage (VRRM) | 50V |
| Maximum RMS Bridge Input Voltage (VRMS) | 280V |
| Maximum DC Blocking Voltage (VDC) | 400V |
| Maximum Average Forward Rectified Output Current (IO) | 1.5A |
| Operating Temperature Range (TJ) | 55°C to +150°C |
| Storage Temperature Range (TSTG) | 55°C to +150°C |
| Maximum Reverse Current (Ir) | 10µA |
| Forward Volt Drop per Element (Vf) | 1.0V |
Package Includes:
1 x W04M 1A 400V Full Wave Bridge Rectifier.
*Product Images are shown for illustrative purposes only and may differ from actual product.
| Weight | 0.002 kg |
|---|---|
| Dimensions | 5 × 1 × 1 cm |
